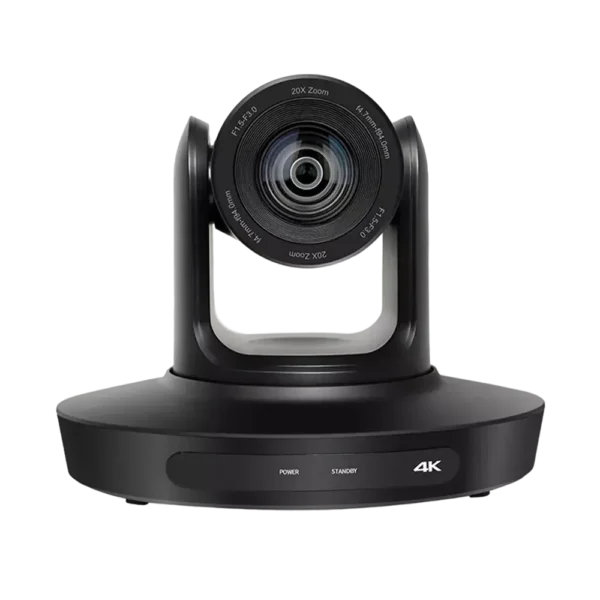

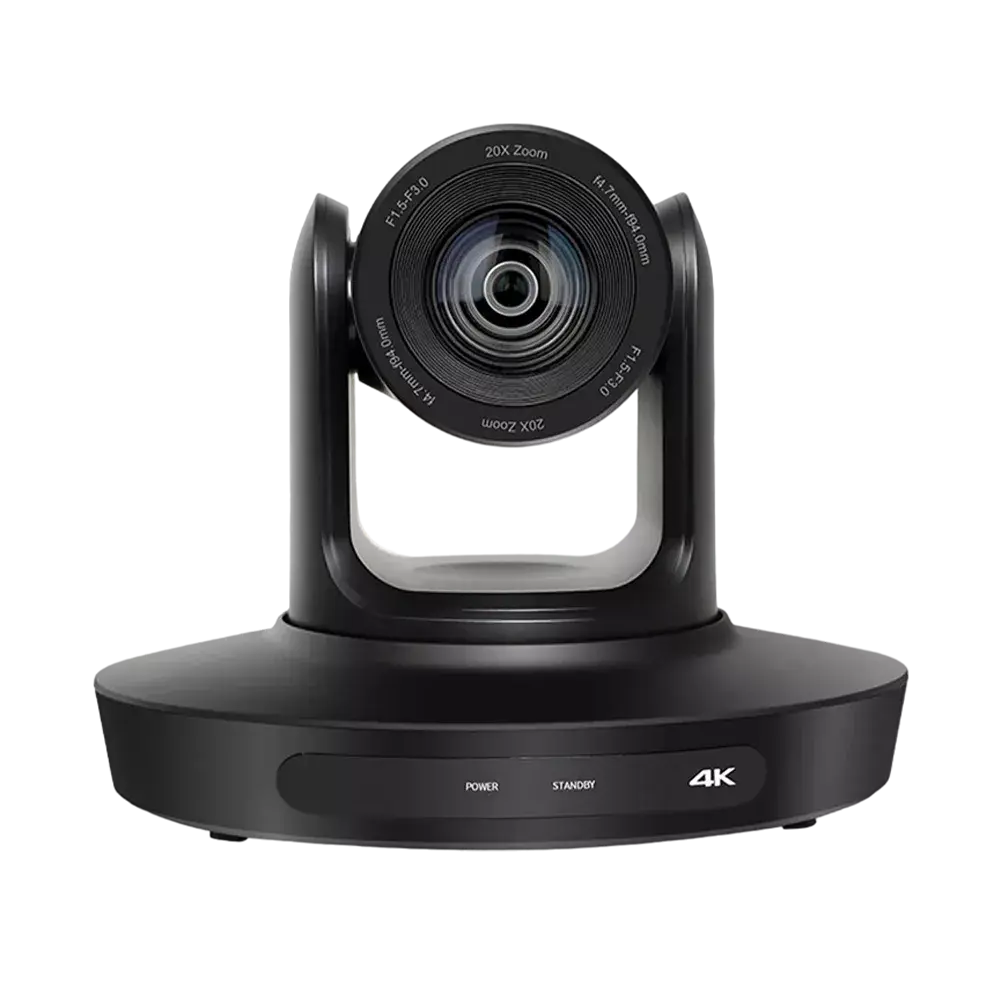

The ARVIA 4K PTZ Camera 360° ARV-VC45 is a premium video conferencing and broadcasting solution designed for professional-grade clarity, control, and convenience. Built with a 4K Ultra HD camera, this high-performance PTZ (Pan-Tilt-Zoom) unit offers crystal-clear visuals, making it perfect for corporate meetings, educational webinars, live streams, and government communications. The camera combines powerful zoom capabilities, low-light performance, and intelligent image processing to deliver vivid images even in challenging lighting environments.
With a sleek design and intuitive remote control options, the ARV-VC45 adapts easily into any setup—whether mounted in a boardroom, classroom, or studio. Its flexible integration features, coupled with VISCA protocol compatibility, make it a reliable choice for organizations that require high-quality and seamless video capture.
Product Highlights:
• Stunning 4K Ultra HD Resolution
• 20x Optical Zoom with Wide Field of View
• 8.5 Megapixel Imaging Sensor
• Superior Low-Light Performance
• Full Remote & VISCA Control
Capture vivid and ultra-detailed visuals in true 4K resolution (3840×2160) at 30 frames per second. The 10-bit color depth ensures accurate, lifelike colors for professional-grade video output.
Equipped with a 20x optical zoom and a wide 58.7° field of view, the camera easily switches between close-up detail and broad coverage, ideal for meetings, lectures, and events.
Powered by an 8.5-megapixel sensor, the ARV-VC45 delivers sharp images and smooth video performance with high color accuracy and excellent detail, even in motion.
Designed to perform in challenging lighting, the advanced CMOS sensor minimizes image noise and enhances clarity, making it suitable for dimly lit rooms and low-light environments.
Easily manage the camera using the included IR remote, third-party remotes, or via VISCA protocol. Pan, tilt, and zoom operations are precise and responsive for live or pre-set control.
Built to adapt to various setups, the camera integrates smoothly into classrooms, studios, or boardrooms. Its design ensures compatibility and ease of installation in diverse environments.
Lens: 20x optical zoom, f=5.2mm(w)~104mm(f)
Horizontal Angle: 58.7° ~ 3.2° (Tele)
White Balance: Auto, Indoor, Outdoor, ATW, Manual
Iris/Sensor: F1.5 ~ F3.0, SONY 1/2.8” CMOS
Effective Pixels: 8.29 Megapixels
S/N Ratio: 45dB
Exposure Modes: Auto, Manual, Iris Priority, Shutter Priority, Brightness Priority
Minimum Illumination: 0.1 Lux @ (F1.5, AGC ON)
Resolution Options:
3840×2160 p30/25
1920×1080 p60/59.94/50/30/29.97/25
1280×720 p60/50
Digital Noise Reduction: Supports 2D & 3D noise reduction
Encoding Format: H.264, H.265
Profiles: Main, High, Baseline (H.264 only)
Streaming Protocols: RTMP, RTSP, SRT
Main Code Stream Resolution: 1080 (p30/25/20/15/10/5/3)
Auxiliary Code Stream Resolution: 640×480, 640×360, 480×360, 352×288, 320×240, 176×144
HDMI: HDMI1.4
HDMI Mode: HDMI, DVI
HDMI Color Space: RGB, YCbCr422, YCbCr444
Audio In: Unbalanced analog input (Line In) 3.5mm
Sampling Rate: 44.1K, 48K
Audio Encoding Format: AAC
USB Protocol: UVC1.1, UAC1.0
UVC Video Coding Format: YUY2, MJPEG
UVC Video Frame Rate: Max. 30fps
UAC Audio Coding Format: PCM
Control Modes: IP, RS-232 (RJ45), RS-422/485 In (RJ45), IR Remote
Network Control Protocol: ONVIF, VISCA Over IP
Serial Control Protocol: VISCA, Pelco D, Pelco P
Pan Range: ±168°
Tilt Range: -30° ~ +90°
Pan Speed: 0.1°/s ~ 60°/s
Tilt Speed: 0.1°/s ~ 60°/s
Pan Positioning Accuracy: 0.1° ±10%
Tilt Positioning Accuracy: 0.1° ±10%
Preset Speed Levels: 7
Preset Position Numbers: 255
Input Voltage: DC12V IEC60130-10 (JEITA Standard RC-5320A) TYPE4
Input Current: Max. 1.5A
POE: 802.3af (Optional)
Power Consumption: Max. 18W
Operational Temperature: -10 ~ 40°C
Storage Temperature: -20 ~ 60°C
